REFIAL® -BIO WOOL Fibers

Refractory fiber Insulation

REFIAL® -BIO WOOL Fibers

REFIAL® -BIO WOOL is a high temperature, fire-resistant insulation material manufactured by up-to-date spinning Process with high purity of Calcium, Magnesium, Silicate. It can be applicable to ship building industry, various marine structure and other general industry.

REFIAL® -BIO WOOL is a safe insulation material to human body and it successfully passed Europe Animal Test. (EU directive 67/548 EWG & German TRGS 905). It’s fiber can be quickly soluble and exhausted from human body even after inhalation.

REFIAL® -BIO WOOL is a safe insulation material to human body and it successfully passed Europe Animal Test. (EU directive 67/548 EEC & German TRGS 905) . It is proved that this super high temperature fireproof material is totally safe for human body even when you inhale this product.

Outstanding characteristics

  • Exonerated from carcinogenic classification under EC and restriction under German regulation
  • Low thermal conductivity
  • Low heat storage
  • Easy to cut, wrap, or form

Standard sizes

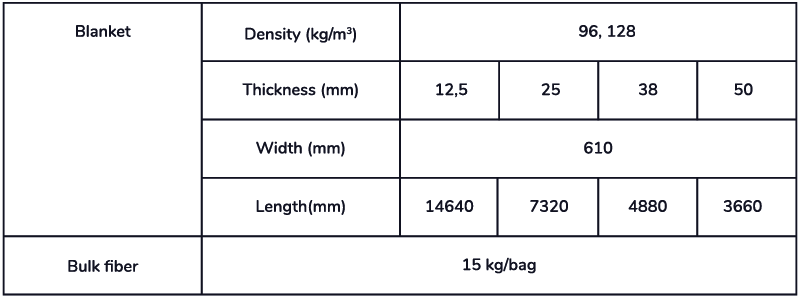

REFIAL® -BIO WOOL Fibers standard sizes

Other sizes are available upon request sizes

Application

Blanket
  • High Thermal insulation for general use
  • (thermal power plant, HRSG, marine insulation, electric furnace, diffusing furnaces, etc.)
  • Insulating lining material for furnace ceiling and walls (annealing furnace, Heat treatment furnace, etc.)
  • Back-up insulation for furnace ceiling and walls (petroleum refining furnaces, tunnel kilns, etc.)
  • Expansion joint fillings for furnaces.

Bulk Fiber
  • Packing for ceilings and walls of furnaces.
  • Expansion joint fillings for furnaces.
  • Filling material for various composites.

Properties & advantages

  • Bio-solubility
    It is an eco-friendly and non-toxic super-heat insulation material that dissolve rapidly in the human body and is discharged in cases of inhalation.
  • High-Temperature Stability
    Maximum service temperature is 1260°C (REFIAL® -BIO WOOL 1300)
  • Lower Thermal Conductivity
    Low-heat conductivity at high temperatures provides excellent thermal insulation.
  • Light weight and Flexibility
    It can be installed in any place due to its lightness and flexibility.
  • Low-Heat Storage
    It can reduce heat loss resulting from heat storage in furnace since it stores less heat due to density being smaller than refractory bricks.
  • Economic Efficiency
    It’s excellent insulating property saves fuel costs and its reduction in installation time due to easy handling and application minimizes construction costs.
